ALFA - 388

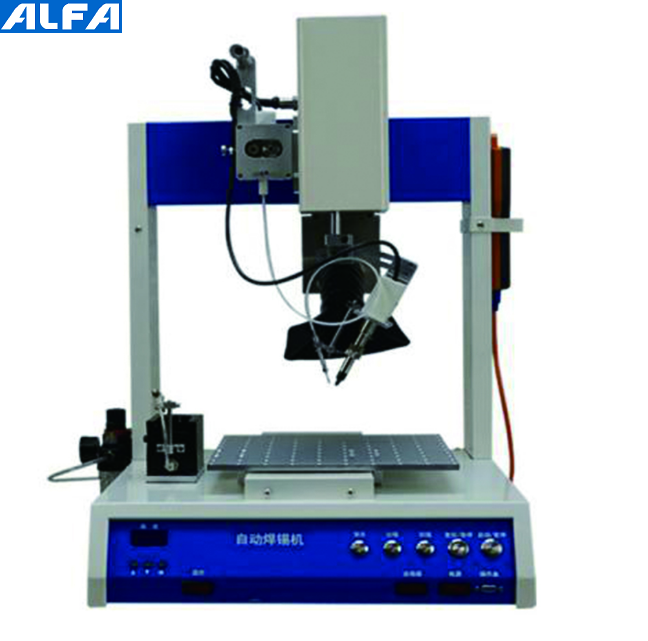

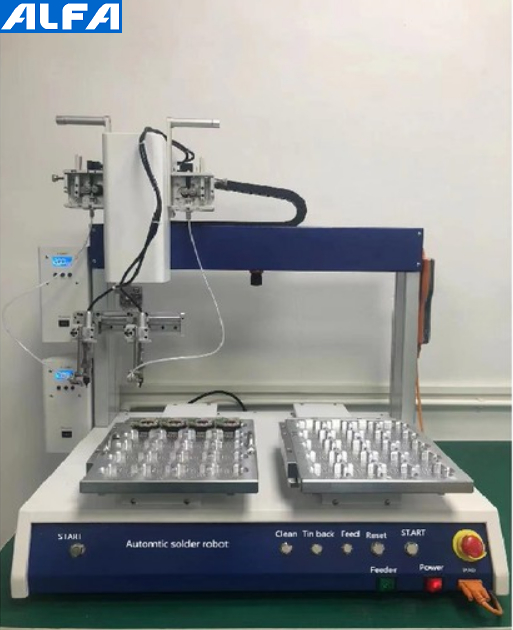

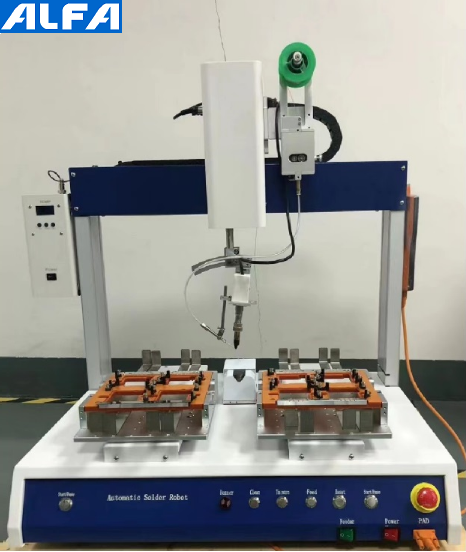

Automatic Soldering Robot

Application:

Use for automotive electronic,digital product,LCD,PCB board,connector,RJ/web transformer,winding displace-ment cable,FPCB and COF plugging solder, computer main board,Cable,motor and so on.

Feature:

1.Perfect soldering set, it combine with the function of welding and plugging welding. Each instruction has independent

Pre-heating time, welding time, the time of the tin forth and back and the height of soldering head raise.

2.With soldering copy, display, shifting, MP edit, Modification and fast program command.

3.Support the PLT format input which could directly input the doc and most of time will be saved.

4.Machine could be off-line working, soldering parameter save as SD card, it is easy to copy and save.

5.2G saving capacity and could reach to thousand soldering program. Each program could accept 8000pcs soldering point instruction

6.Two optional feeding tin device: Broken tin and non-broken tin.

7.The panel adopt 320*240 high distinguish-ability and easy to learn and operate.

Spec:

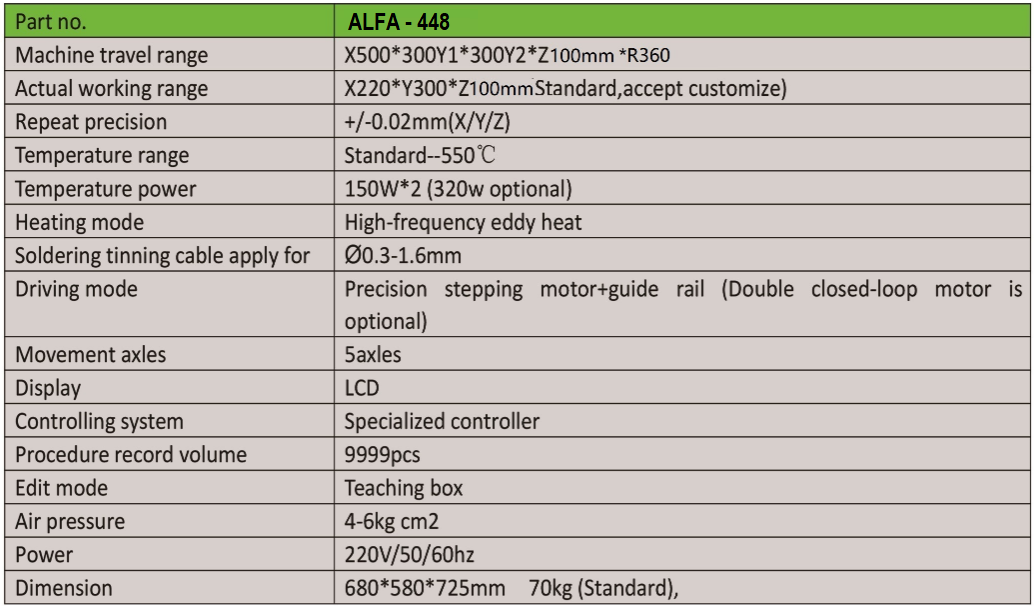

ALFA - 448

Automatic Soldering Robot

Application:

Use for automotive electronic,digital product,LCD,PCB board,connector,RJ/web transformer,winding displace-ment cable,FPCB and COF plugging solder, computer main board,Cable,motor and so on.

Feature:

1.Perfect soldering set, it combine with the function of welding and plugging welding. Each instruction has independent

Pre-heating time, welding time, the time of the tin forth and back and the height of soldering head raise.

2.With soldering copy, display, shifting, MP edit, Modification and fast program command.

3.Support the PLT format input which could directly input the doc and most of time will be saved.

4.Machine could be off-line working, soldering parameter save as SD card, it is easy to copy and save.

5.2G saving capacity and could reach to thousand soldering program. Each program could accept 8000pcs soldering point instruction

6.Two optional feeding tin device: Broken tin and non-broken tin.

7.The panel adopt 320*240 high distinguish-ability and easy to learn and operate.

Spec:

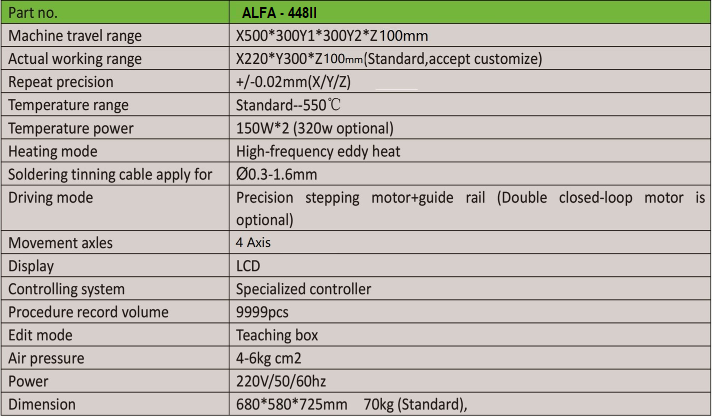

ALFA - 448II

Automatic Soldering Robot

Application:

Use for automotive electronic,digital product,LCD,PCB board,connector,RJ/web transformer,winding displace-ment cable,FPCB and COF plugging solder, computer main board,Cable,motor and so on.

Feature:

1.Perfect soldering set, it combine with the function of welding and plugging welding. Each instruction has independent

Pre-heating time, welding time, the time of the tin forth and back and the height of soldering head raise.

2.With soldering copy, display, shifting, MP edit, Modification and fast program command.

3.Support the PLT format input which could directly input the doc and most of time will be saved.

4.Machine could be off-line working, soldering parameter save as SD card, it is easy to copy and save.

5.2G saving capacity and could reach to thousand soldering program. Each program could accept 8000pcs soldering point instruction

6.Two optional feeding tin device: Broken tin and non-broken tin.

7.The panel adopt 320*240 high distinguish-ability and easy to learn and operate.

Spec:

ALFA - 601A

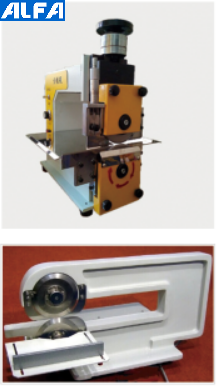

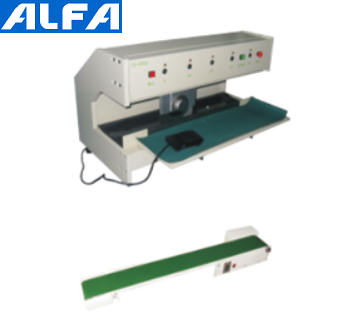

V-Cut Separator

Spec:

Power : 220V/AC 50/60HZ

Size : L720*W410*H480mm

Weight : 51kg

Feature:

1 All foundation boards are applicable to this machine

2 Use the machine to cut could minimize stress Occurrence and prevent the welding point crack

3 All cutter materials imported from Japan and with long life-span.

4 Keep PCB, the circle blade is moving to separate.

5 PCB length range application: 400mm, 600mm,900mm, 1.2M

6 For LED PCB board could use 601A-D with upper double blades.

ALFA - 601K

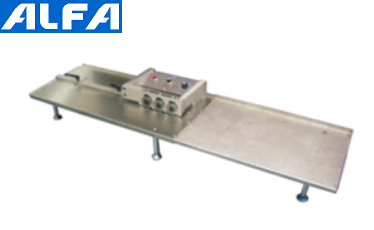

Aluminum PCB Separator

Spec.:

Power: 220 V,50/60HZ

Max Cutting length: No limit

Feeding speed: Adjustable

Applicable PCB thickness: 0.5-3mm

Size: 540*280*240mm

Weight:36kgs

Feature:

1: With 6 pcs blades, total 3 set upper and lower blade to do separate,

Total cutting process include four parts. It could less stress when do the cutting process each part.

Reducing 80% stress.

2:Less stress on blades, prolonging the blade life-span.

3:Applicable for LED aluminum board, copper board, luminous tube, light bar, display board,etc.

ALFA - 601/601V

PCB Separator

Spec:

Power: AC 220V/50HZ, 40W

Size: L390xW310xH410mm

Weight:30kg

PCB thickness: 0.6mm~1.6mm.

Feature:

1 All foundation boards are applicable to this machine

2 Use the machine to cut could minimize stress

Occurrence and prevent the welding point crack

3 All cutter materials imported from Japan and with long life-span.

4 The component height on the PCB max.30mm,under the board limit 10mm

5 The max. Cutting width 190mm.

ALFA - 604A

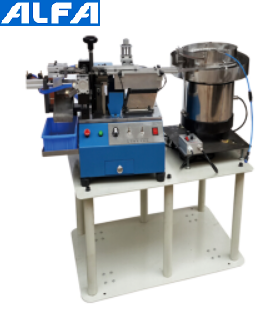

Automatic Loose Radial Lead Cutter

Spec:

Power:220V/50/60Hz

Size: L360*W300*H350mm

Weight:35kg

Speed: 3500-4000pcs/H

5000-12000pcs/H(Auto.)

Feature:

1 For all radial component lead cut

2 High precision cutting down, Lead length min.3mm(Less than 3mm, need to customize)

3 All cutter materials imported from Japan, longer life-span.

4 It is the best suitable machine for Mass production.

5 The feeder bow you could move away or install.

5 Application range:A≤10mm B≤16mm.

6 Excess the standard range,it could customized

The different feeder bowl.

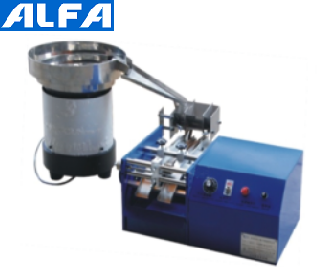

ALFA - 604F

Loose Radial Lead Forming Machine

Spec:

Model: FT-604F

Power: AC 220V 60Hz/50Hz

Size: L650*W350*H500MM

Weight: 45kg(without feeder bow)

Speed: 2500-3000PCS/H

Feature:

1.Use for the radial lead component cutting and forming mass production.

2.Most of radial component could share on same machine to cut and form, except the big lead di-ameter transistor component. High requirement could accept customized.

3. For the Shoulder height B could be adjusted, length less than 3mm we have different similar type with clamping picking introduced. But this one only do the B 3-10mm adjustable.

4.Imported blade material from Japan which support the life span longer.

5. The machine could also use for only cut only by remove the forming position away small.

6.Stable operation with electric combined the air support.

7.Also machine could match different feeder to meet full automatic forming.

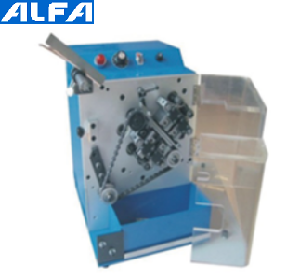

ALFA - 605/605M

Taped Radial Lead Cutter

Spec:

Power: 220V/AC 50/60Hz

Size:L360*W220*H150mm

Weight:24kg

Speed: 40000-50000pcs/H

Feature:

1 Suitable for the taped radial lead cutting.

2 Stable quality and best suitable for mass production.

3 All cutter materials imported from Japan and with long life-spa

4 Lead length is adjustable.

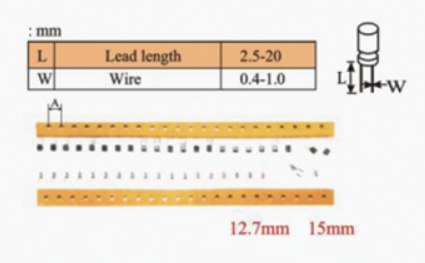

5 Pitch 12.7mm and 15mm will be different separated machine

6 FT-605F is for taped component forming &cutting use.

ALFA - 605F

Taped Radial Lead Cutting&Forming

Spec:

Power: 220V/AC 50/60Hz

Size:L360*W230*H350mm

Weight:40kg

Speed: 7500pcs/H

Feature:

1 Suitable for the taped radial lead cutting.

2 Stable quality and best suitable for mass production.

3 All cutter materials imported from Japan and with long life-span.

4 Lead length is adjustable.

5 Pitch 12.7mm and 15mm will be different separated machine

6 FT-605F is for taped component forming &cutting use.

ALFA - 604

Loose Radial Lead Cutter

Spec:

Power:220V/50/60Hz

Size: L360*W300*H350mm

Weight:35kg

Speed: 3500-4000pcs/H

5000-12000pcs/H(Auto.)

Feature:

1 For all radial component lead cut

2 High precision cutting down, Lead length min.3mm(Less than 3mm, need to customize)

3 All cutter materials imported from Japan, longer life-span.

4 It is the best suitable machine for Mass production.

5 The feeder bow you could move away or install.

5 Application range:A≤10mm B≤16mm.

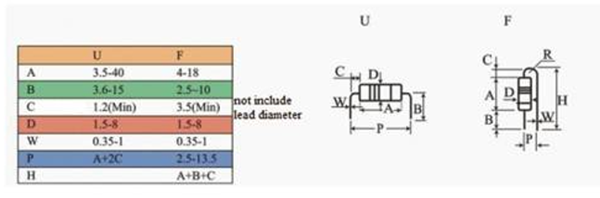

ALFA - 609U/609F

Taped Axial Lead Former

Spec:

Power: 220V/AC 50/60HZ

Size:L360*W220*H150mm

Weight:24kg

Speed: 40000-60000pcs/H (Taped)

Feature:

1: Suitable for taped and loose axial lead component forming And cutting.

2: Lead and pitch could be adjusted.

3:All cutter materials imported from Japan

4:You could remove the feeder bowl or install according to different component production.

5: U or F shape in different product, for special forming could customize.

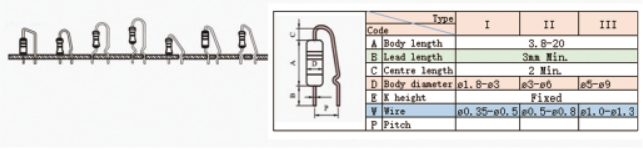

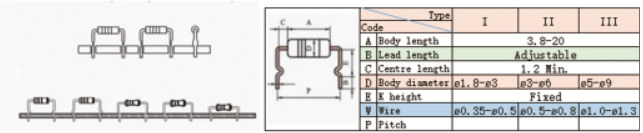

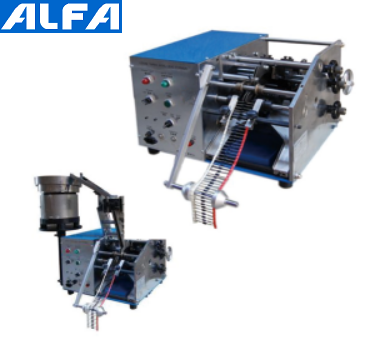

ALFA - 607A/607B

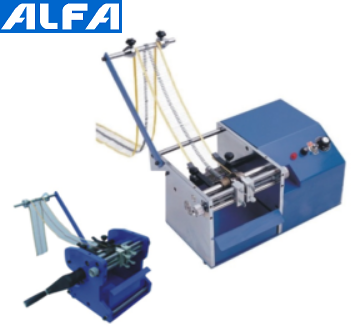

Automatic Axial Lead Former (Loose & Taped)

Spec:

Power: 220V/AC 50/60Hz

Size:L610*W500*H700mm

Weight:90-115kg

Speed: 4500-7200pcs/H

Feature:

1 Suitable for the taped and loose axial resistor, diode forming and cut.

2 Stable quality and best suitable for mass production.

3 All cutter materials imported from Japan and with long life-span.

4 Machine could do the KINK on the lead, the different shape could be match different die set. All die set are customized.

ALFA - 609UL/609FL

Loose&Taped Axial Lead Former

Spec:

Power: 220V/AC 50/60Hz

Size:L440*W430*H190mm

Weight:45kg

Speed:4000-6000pcs/H (Loose)

Feature:

1 Suitable for taped and loose axial lead component forming And cutting.

2 Lead and pitch could be adjusted.

3 All cutter materials imported from Japan

4 You could remove the feeder bowl or install according to different component production.

5 U or F shape in different product, for special forming could customize.

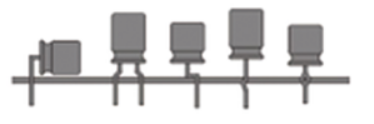

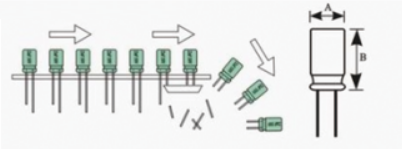

ALFA - 613

Loose &Tube radial Lead forming Machine

Spec:

Power: 220V/AC 50/60Hz

Size:L850*W580*H910mm

Weight:145kg

Speed: 3600pcs/H

Feature:

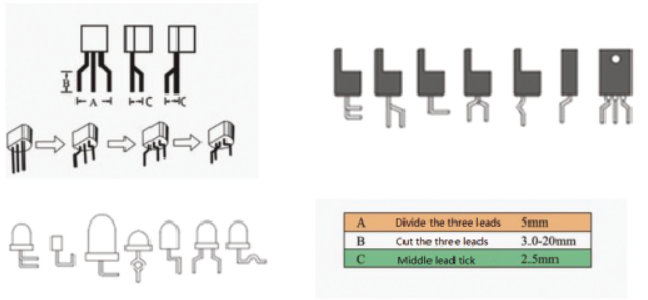

1 Suitable for the loose radial component lead forming(Transistor, LED, Holl IC)and so on different component different feeder bowl, accpet the customize.

2 Fiber sensor detect, Cutter bar position design. It could do the polarity detect.

3 Stable quality and best suitable for mass production.

4 All cutter materials imported from Japan and with long life-span.

5 Lead length is adjustable.

6 All dimension is customize according to different requirement.

ALFA - 603T

Tube Power Transistor Forming Machine

Spec:

Power: 220V/AC 50/60Hz

Size:L360*W380*H430mm

Weight:33kg

Speed: 1 Tube/ 20sec.

Feature:

1 Suitable for the power transistor component lead forming and cutting

2 Speed is adjustable, and simple operation

3 Stable quality and best suitable for mass production.

4 All cutter materials imported from Japan and with long life-span.

5 Shoulder length could be adjustable.

6 All die set is customized according to different requirement.

7 Machine could match feeder bowl to meet full automatic wok

ALFA - 611/611A

Pneumatic Radial Lead Forming Machine

Spec:

Power: 220V/AC 50/60Hz

Size:L310*W180*H140mm

Weight:12kg

Speed: 2000/H

Feature:

1 Suitable for all the radial lead component cut and forming

2 Small in capacity and easy to move in the production line

3 Cutting and forming one time fulfil.

4 One machine could match different die set to finish different component shape requirement.

5 It suits for small quantity production, but diversify components shape customized.

6 Cutter material imported from Japan with long-life span.

7 If with the KINK on the lead, we suggest FT-611A double cylinder.

ALFA - 675

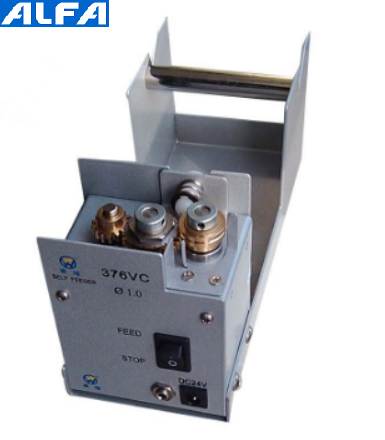

V-Groove Solder

Spec.:

Power: DC24V 75mA

Size: 380*230*130mm

Speed:30mm/s

Weight:590g

Feature:

1. Automatic Solder v-cut machine adopt the special design which the circle cutter pressing on the solder wire to make small hole.

2. It will help to eliminate soldering splash during lead free solder work, it could also improve the quality and good protection for high precision electronics.

3. Small capacity,easy carry, lower noise.

4.Fast activate soldering flux to create a ideal soldering condition. Strengthen the Weldability, liquidity.

5. Applicable wire diameter: 0.5-1.6mm

375-01 for 0.5mm

376-02 for 0.6mm

376-03 for 0.8mm

376-04 for 1.0mm

376-05 for 1.2mm

376-06 for 1.5mm

376-07 for 1.6mm

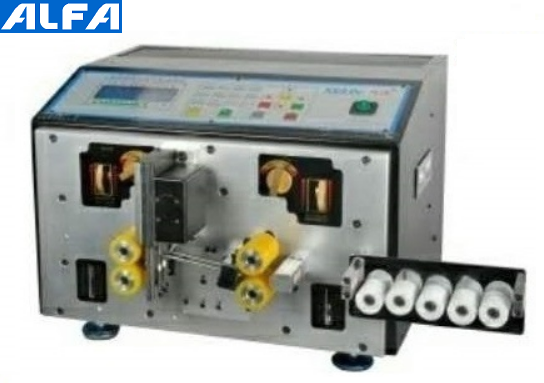

ALFA - 220T

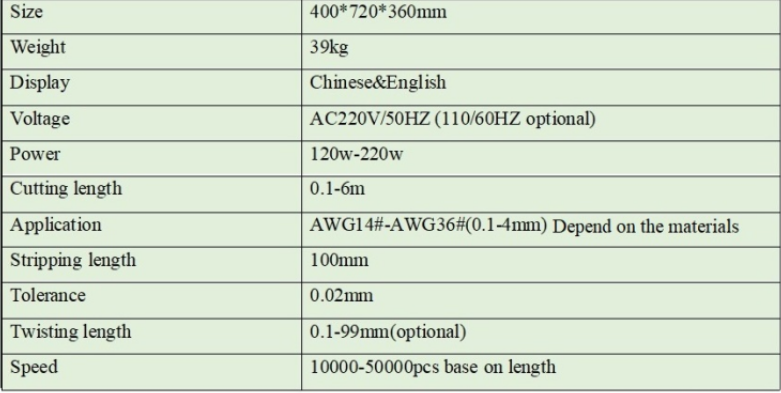

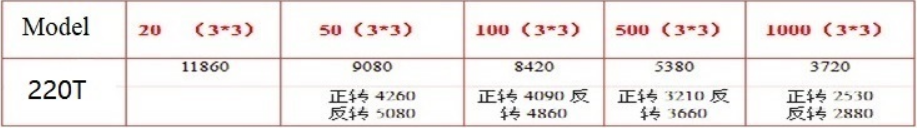

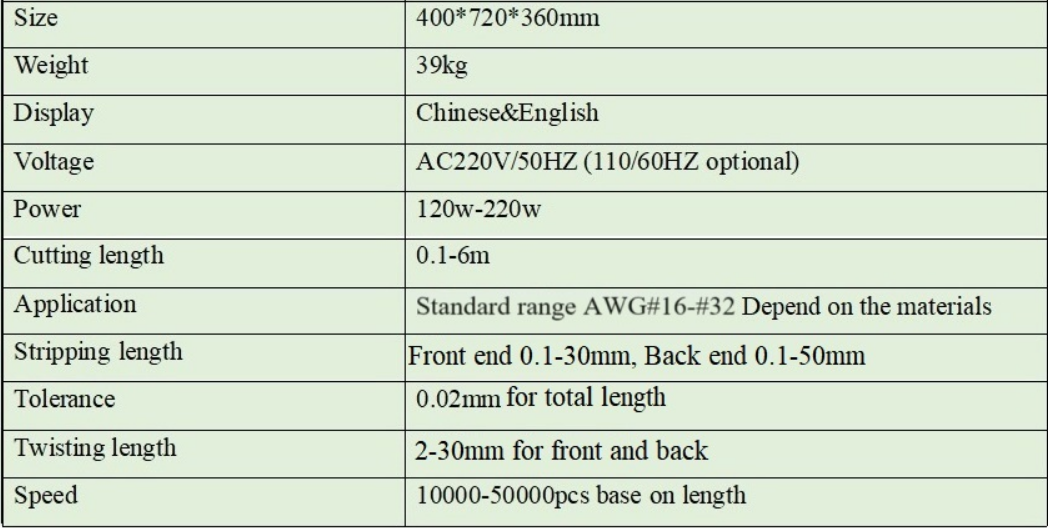

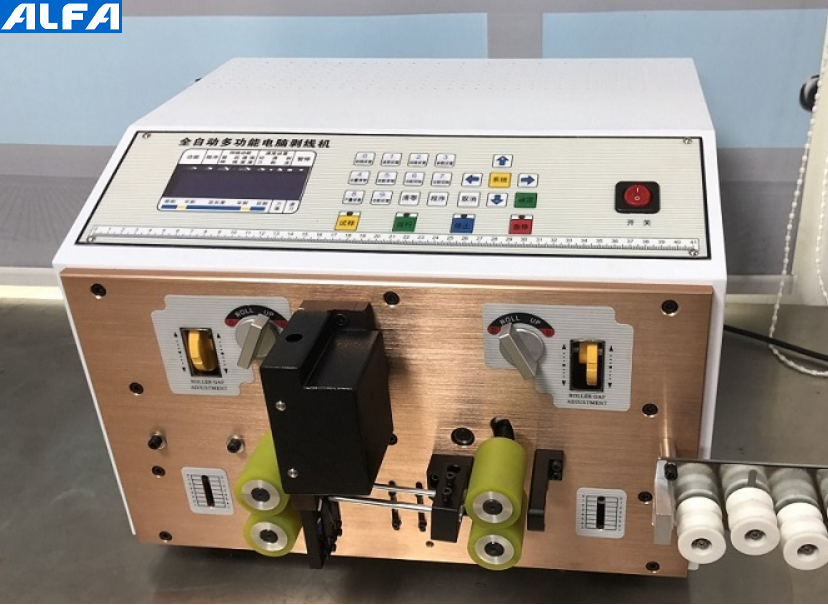

Stripping&Cutting Machine

Feature:

1.It apply for cable, Teflon cable, shield wire and so on, it could automatic do the stripping, cutting, half or full stripping.

2.Easy to change the spec. and operation

3.Machine adopt the micro-computer and key operation

4.High speed stripping, length for the head or end of cable is adjustable

5.Automatic calculate or time delay.

6.99 programs could be saved.

Spec.

Capacity: pcs/h

ALFA - 350

Automatic Cable Stripping and Cutting Machine

Feature:

1.It apply for cable, Teflon cable, shield wire and so on, it could automatic do the stripping, cutting, half or full stripping.

2.Easy to change the spec. and operation

3.Machine adopt the micro-computer and key operation

4.High speed stripping, length for the head or end of cable is adjustable

5.Automatic calculate or time delay.

6.99 programs could be saved.

Spec.

Capacity: pcs/h

ALFA - 618

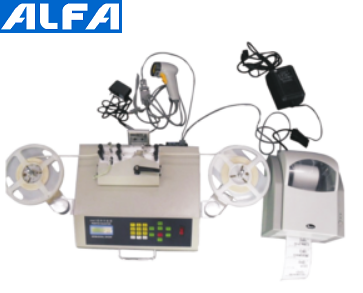

SMD Chip Counter

Spec:

Power: 220V/AC 50/60Hz

Size:L470*W300*H180mm

Weight:10kg

Speed:Fast, 3 levels adjustable

Application Counting range: -99999-99999pcs

Feature:

1. Any size Reel SMD electronic components/chip, such as SMD capacitor, SMD resistor, etc

2.Space between two components: 2,4,8,10,12,16, 24,32,44,56(mm)

3. Width of reel: 8, 12, 16, 24, 32, 44, 56mm

4. Suitable for all industries related to SMD components

5. Easy operation. Vertical appearance for both standing and sitting operation.

6. Fast counting speed, such as 5000pcs / 30 seconds.

7. Buffer to stop the machine when it is close to the end.

8. Pre-set counting amount, easily get the correct number of SMD components you need.

9. Precisely count the number of SMD parts to better control inventory.

10. Suitable for any size of SMD reels.

11. Small in size, light in weight, portable.

12. The printer, Bar code copy is optional.

ALFA - Reflow and Waving Tester

Application:

1. Hot Air Reflow Furnace

2. Infrared Reflow Furnace

3: Waving solder test

Feature:

1. High efficiency, store data continuously 16 times, and download it to the computer for analysising

2. Use analysis model, it’s simple, and the rapid data analysis system is based on PC ( Windows ) and PDA ( Pocket )

3. Low power consumption, a lithium battery is used, which can supply power continuously for more than 60 hours and can be charged in 10 minutes

4. The communication mode uses the serial port, USB and wireless transmission, which is suitable for a variety of work environment and application field and it has multilayer insulation protection, stainless steel refining, that can deal with the most severe lead-free process and withstand harsh industrial environment

5. Rigorous process and accurate calibration services, all correction are made by FLUKE-724, the largest CTI calibration partners in China, ensuring that each machine works accurately and reliably

6. Small size, large storage capacity ( 230,400 data points ), using FLASH memory chip that will not lose data in any accident.

ALFA - MR 3A

Air-Driven Cutter

Spec.:

Model: MR-3A

Cutter could match different type ：S20 S20.1 S20S ZS20 S03258 S03258S F10 F10S F03258 F03258S S20Y Y20

Length：119mm

Weight：106g

Diameter：ø24mm

Air supply：4-5kg

Apply for：Copper dis. 1.0mm Iron dia. 0.5mm

Feature:

It suitable for kind of product like: Copper,Iron,Plastic,leather,electronic hotting tube,bottle fiber and so on. Also could use for cut the kind of different terminal lead.

ALFA - SMT spare parts

Nozzle

FUJI Nozzle

JUKI Nozzle

YAMAHA Nozzle

ALFA - SMT spare parts

Feeder Series
